C-RAM FAC High Performance Convoluted Absorber
PPG C-RAM® FAC is a series of high performance broad banded microwave absorbers, made from light weight, flexible urethane foam treated with a dielectric lossy material. PPG C-RAM FAC is fire retardant and meets NRL 8093.
PPG C-RAM® FAC is available in the standard grades listed below. Custom sizes and shapes are available on special order. The standard base dimensions are 24 in. x 24 in. (610 x 610 mm).
- PPG C-RAM FAC is normally painted blue. For mm-wave applications (30 GHz and above), it is recommended to leave the material unpainted, as the minerals in the paint itself can begin to affect performance. In this case, “unpainted” should be specified along with the part number.
Discover the Future of Flight
Have questions or need support for your aerospace project? Contact PPG’s aerospace team today for guidance and tailored solutions.

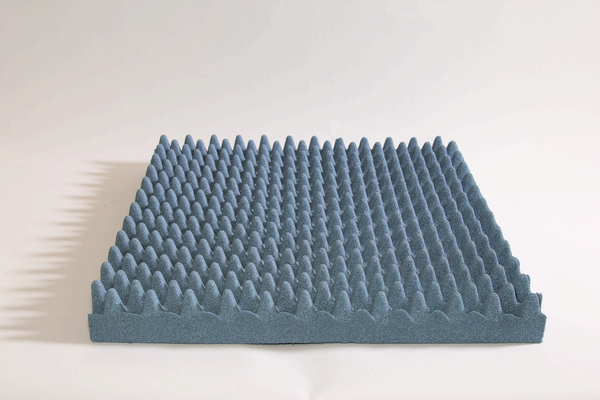

PPG C-RAM FAC is a convoluted product; the front face is rippled or convoluted like an egg carton. These convolutions provide an impedance taper, which is very effective in minimizing front face reflections, especially at higher frequencies.
PPG C-RAM FAC is the workhorse of the industry for frequency ranges of 15 GHz and above. For premium performance at lower frequencies the SFC product line is recommended.
PPG C-RAM FAC is frequently used to line anechoic chambers used for high frequency measurements, and has many application involving suppression of unwanted RF and radar reflections.
