High Power Refractory Brick Microwave Absorber
PPG C-RAM® CF is a broadband microwave absorbing material capable of operating in high temperature, making it ideal for many high power applications.
PPG C-RAM® CF is supplied in standard sheet size 12 in. x 18 in., either 2 in. thick (CF-2) or 3 in. thick (CF-3) depending on performance requirements. Material is also available in custom configurations.
Discover the Future of Flight
Have questions or need support for your aerospace project? Contact PPG’s aerospace team today for guidance and tailored solutions.
Power handling capability of PPG C-RAM CF depends on the installation and the provisions for air circulation. Up to 10 watts/in² can be dissipated when the back of the absorber is open to permit convective air circulation. Up to 25 watts/in² can be dissipated when air at 100 ft/min is directed into the base of the conical cavities.

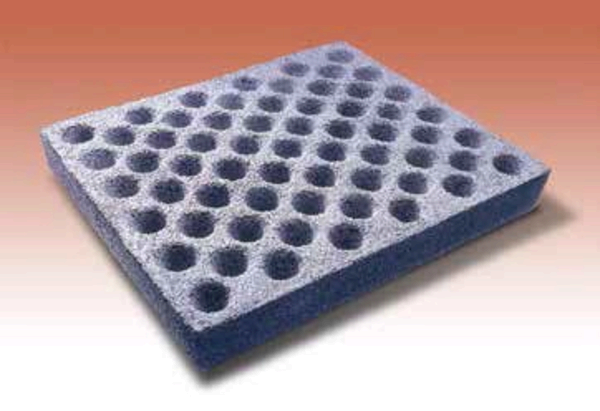

PPG C-RAM CF consists of a matrix of lightweight unicellular glass foam coated with a lossy RF material. The backside of the foam sheet contains a pattern of conical cavities painted with a reflective high-temperature aluminum paint. Front and sides of the material are black.
C-RAM™ CF is inorganic and will not burn. The material is readily cut to size using a bandsaw.
Complex geometries can be machined on a mill. The product may be stacked as bricks into a self-supporting wall or bonded with mortar.
Service temperature
- 650°F
Shelf life
- 5 yrs. Minimum
