PPG SIGMACOVER® 809

Long-Lasting Protection for Steel in Highly Corrosive Environments

PPG SIGMACOVER® 809 is a high-performance epoxy primer (or buildcoat) that protects steel structures from the damaging effects of corrosion in extreme environmental conditions.

Developed for use across many industries, PPG SIGMACOVER® 809 meets ISO 12944 C5VH and CX extreme corrosion protection standards and extends the service life of both onshore and offshore steel structures.

View PDS

Uses and Industries

PPG SIGMACOVER® 809 epoxy primer provides excellent corrosion protection to steel structures in the oil, gas, chemical and renewable energy industries, as well as to steel infrastructures.

Oil, gas, and chemical industries

Ideal for new construction, maintenance and surface tolerance repairs to steel structures requiring protection in harsh environments. For example:

  • Upstream and downstream steel structures and equipment
  • Onshore and offshore structural steel
  • Renewable refineries

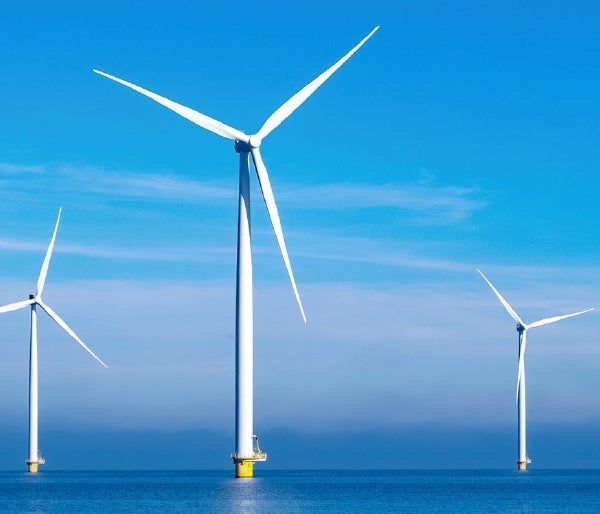

Renewable energy

Suitable for both new construction and maintenance application, including touch-ups during installation and long-term maintenance of:

  • Offshore substation topsides
  • Offshore OEM equipment
  • Onshore and offshore structural steel

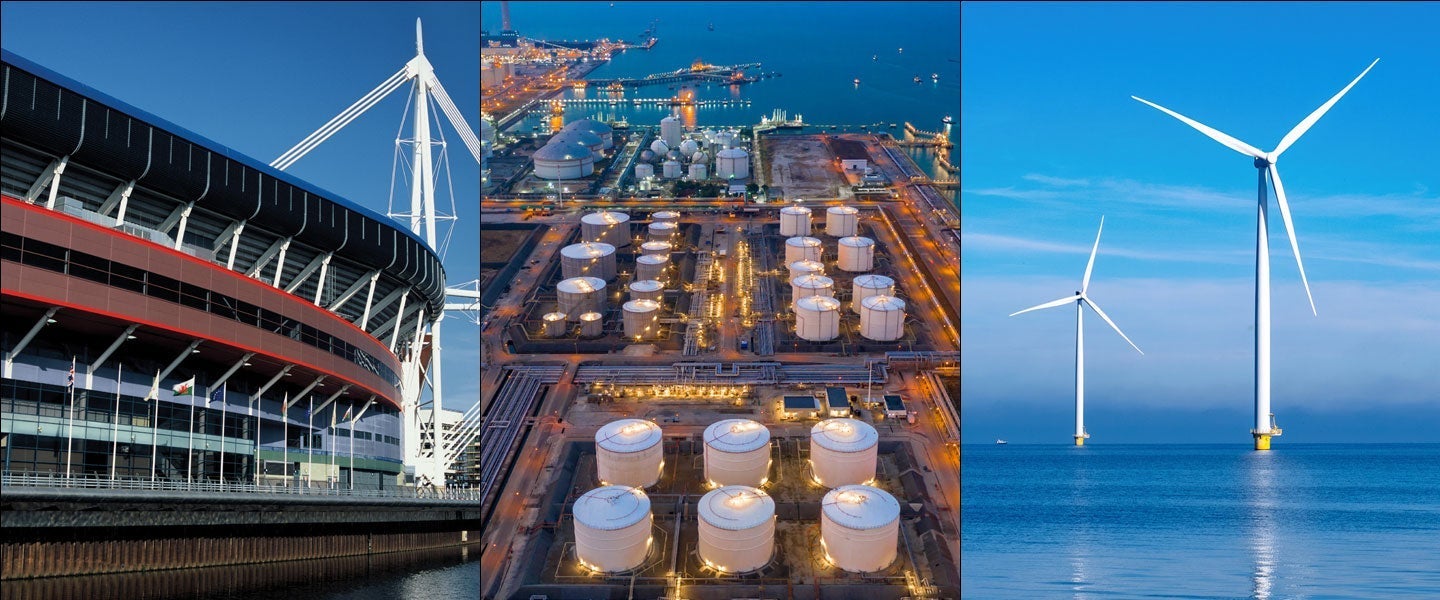

Steel infrastructures

Can be used in the construction and maintenance of any onshore or offshore steel infrastructure that needs protection against harsh environments. For example:

  • Ports and harbors
  • Bridges
  • High-rise buildings
  • Stadiums

Benefits of PPG SIGMACOVER® 809

Excellent Corrosion Resistance

  • Meets ISO 12944 C5VH and CX extreme corrosion standards, providing protection in the harshest of conditions.
  • Reduces the frequency and requirement of maintenance and repairs.
  • Extends the working life of steel structures.
  • Gives excellent protection and meets ISO 13944 standards at lower dry film thicknesses (DFT) of 360 µm and 280 µm.

Cost-Effective Protection

  • PPG SIGMACOVER® 809 is more economical than zinc-rich primers

Easy and Efficient Application

  • Easy to apply by airless spray or using a brush.
  • High volume solids formulation for faster curing.
  • Easier to mix and handle than higher density zinc-rich primers.

Reduced Environmental Impact*

  • Low VOC emissions <280 g/l

*Also complies with ISO 12944-5:2019 min. nominal DFT and minimum number of coats requirements.

steel structures.

PPG SIGMACOVER® 809
Download PPG SIGMACOVER® 809 Brochure
